PCB Test Station

arrow_backTo the overview

04 July 2023 | CCM Electronic Engineering Aps

downloadFor editorial use only

PCB testing is important in the PCB assembly industry as it can avoid many problems and save costs during production. Each component should be tested to ensure no faults or errors that could cause the board to fail on function.

With years of experience in testing PCB boards, we provide customized test solutions for various PCB boards and electronic products. To meet manufacturers' demands, our turnkey test solutions include but are not limited to –

• Microcontroller programming for DUT
• Interchangeable fixture and steel cabinet
• Panel PC, Fanless PC, ensuring many years of operation without stopping
• NI LabVIEW / TestStand Software
• National Instruments Vision Development module
• 24-bit analog inputs for ultra-precise measurements
• Only industrial components are used to increase MTBF and minimize unplanned downtime
• Documentation and source code are included to support maintenance

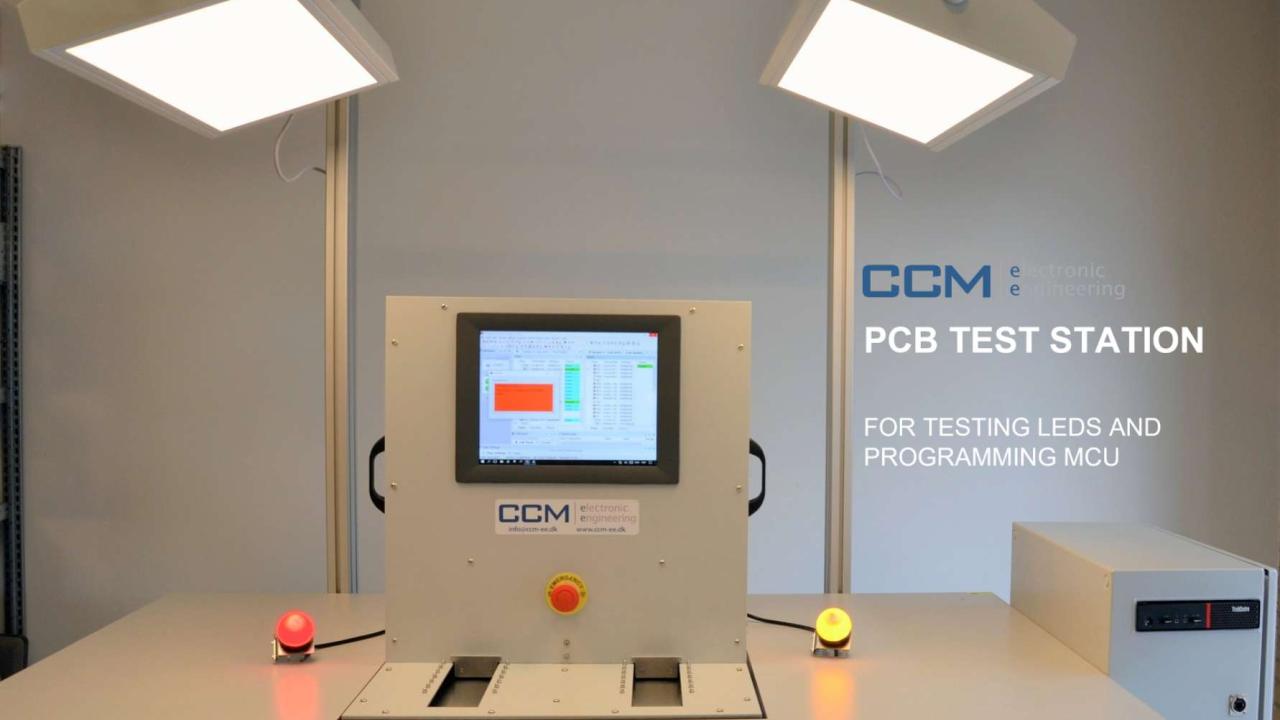

If you are interested, check one of our solutions in the video - the PCB test station which tests two PCBs simultaneously. https://lnkd.in/e48aGsvp

More articles from CCM Electronic Engineering Aps

Hydraulic Motor Tester Panel System
CCM Electronic Engineering Aps

4. July 2023 | CCM Electronic Engineering Aps

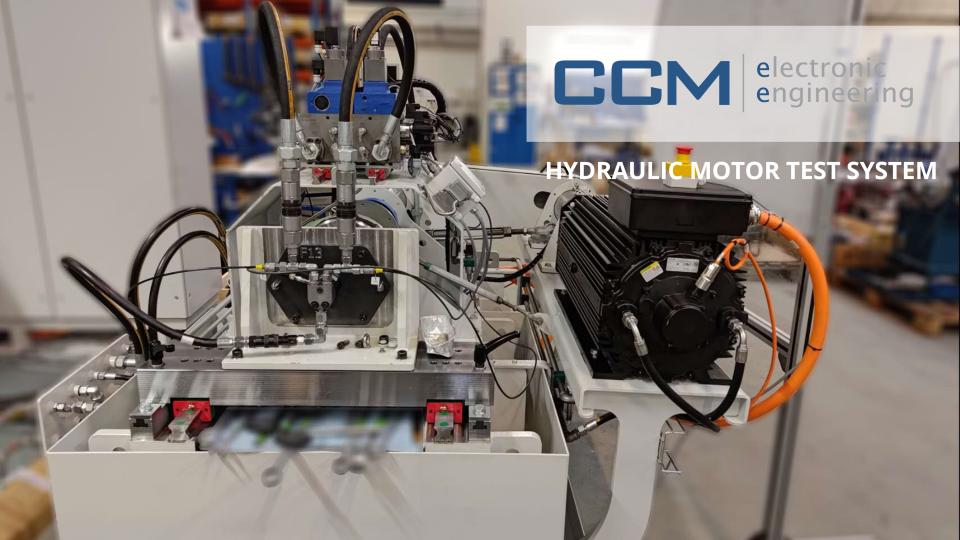

Hydraulic Motor Tester Panel System
